BTP-4200E/4300E_SNBC New Beiyang

Home > Printing and Scanning Products > Label Printer > 108/106mm Label Printer

Label Printer

108/106mm Label Printer

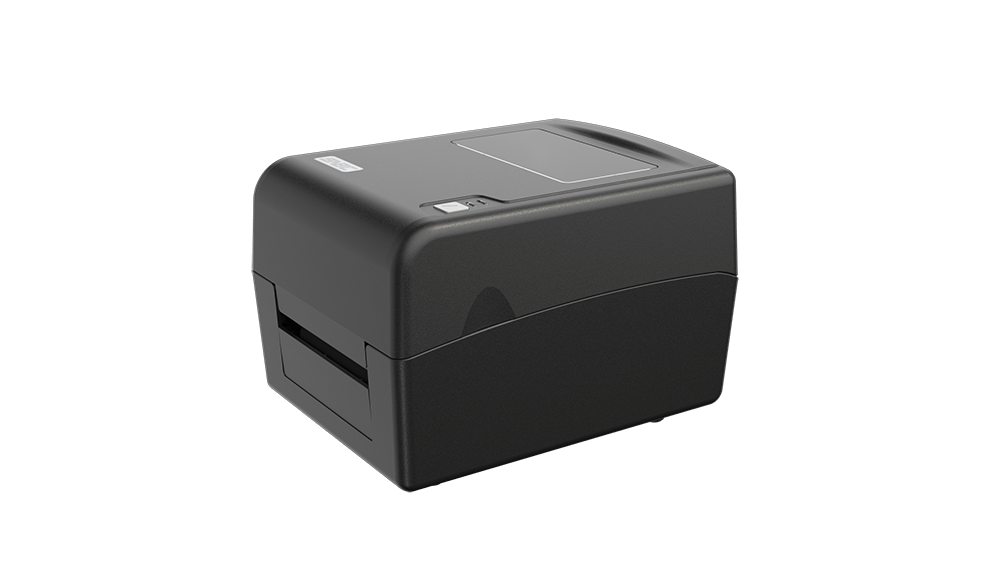

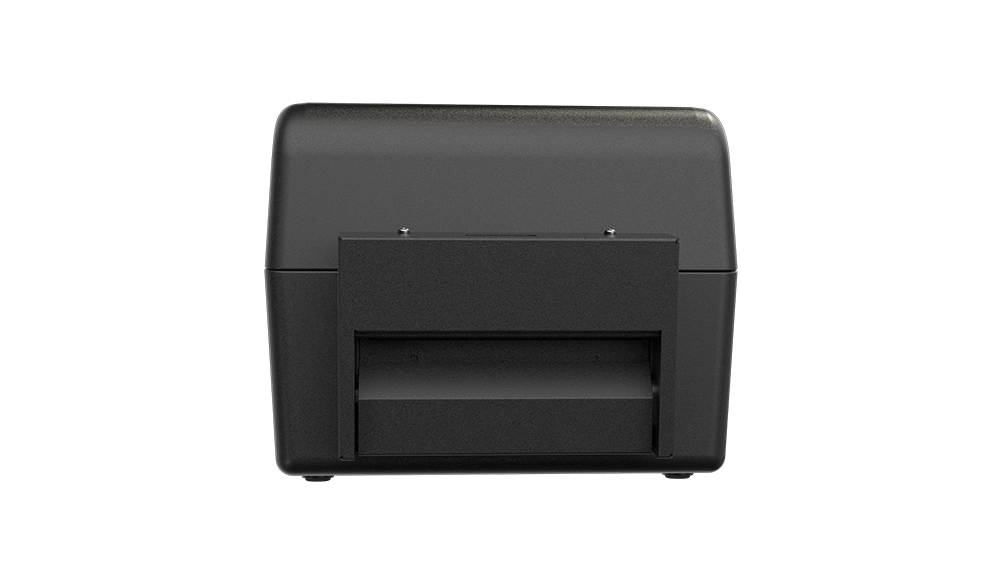

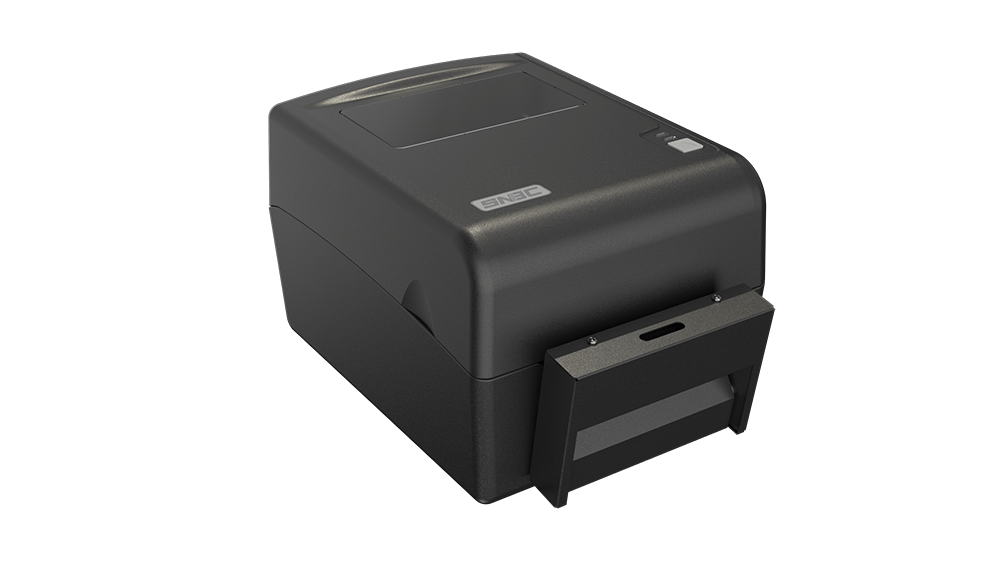

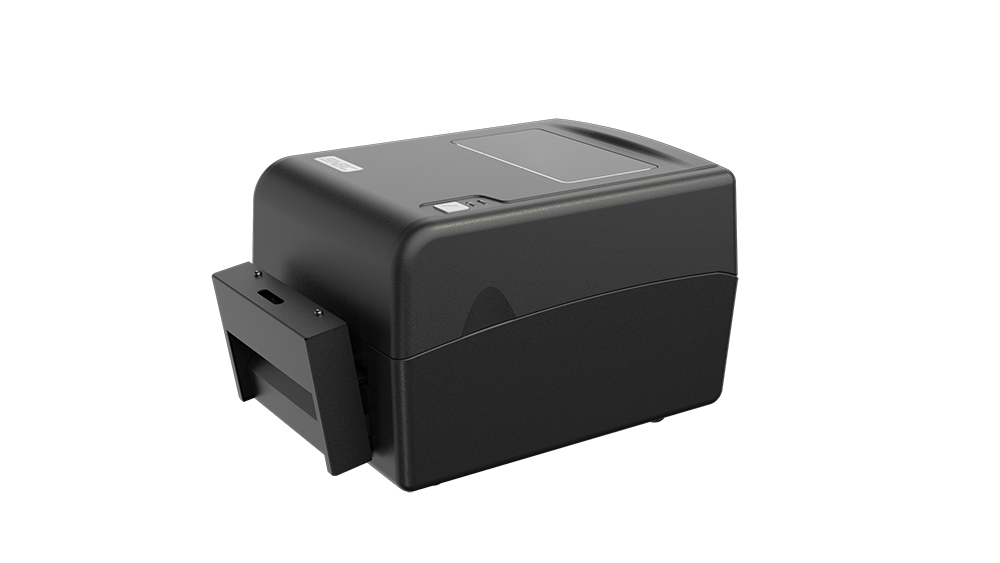

BTP-4200E/4300E

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	4200E:203 DPI 4300E:300DPI
	Print width	4200E:Max.108mm 4300E:Max.106mm
	Print speed	4200E:Max.152mm/s 4300E:Max.102mm/s
	Memory	FLASH:8MB(16MB/32MB) SDRAM:32MB
	Sensor	Paper end sensor, Label gap sensor, Black mark sensor, Cover opening sensor, TPH voltage sensor, TPH overheating sensor,Ribbon detection sensor, Peel off sensor
	Driver	Windows, MacOS, Linux
	Button LED,LCD	1 button, 2 LEDs
	Interface	Standard: USB Optional: Serial, Ethernet,Bluetooth
Barcode Font Graphic	1D Barcode	Code 39, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8,EAN-13, HBIC (code 39 with verify symbol), Codabar, industry/interleaved 2 of 5, storage and transportation Code, UPC2, UPC5, Code 93, Postnet 25 (China), UCC/EAN,matrix 25, POSTNET code
	2D Barcode	PDF417, Maxicode, QR code
	Graphic printing	Binary unformatted bitmap, HEX, PCX, BMP and IMG files can be downloaded to FLASH or RAM
Paper	Paper type	Label paper, Continuous paper, Marked paper
	Paper width	Max.120mm
	Paper roll ID	Max.25.4mm
	Paper out	Tear off, Peel off, Paper cut
	Paper roll OD	Max.127mm
Ribbon	Ribbon length	Max.300m
Ribbon	Ribbon ID	12.7/25.4mm
Power supply	Input	AC 100-240V,50/60Hz
Power supply	Output	DC 24V, 2.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	218(W)x280(D)x180(H)mm
Weight	Weight	Approx.2.3Kg
Standard	Certification	CCC, UL, FCC, CE, CB, ICES
